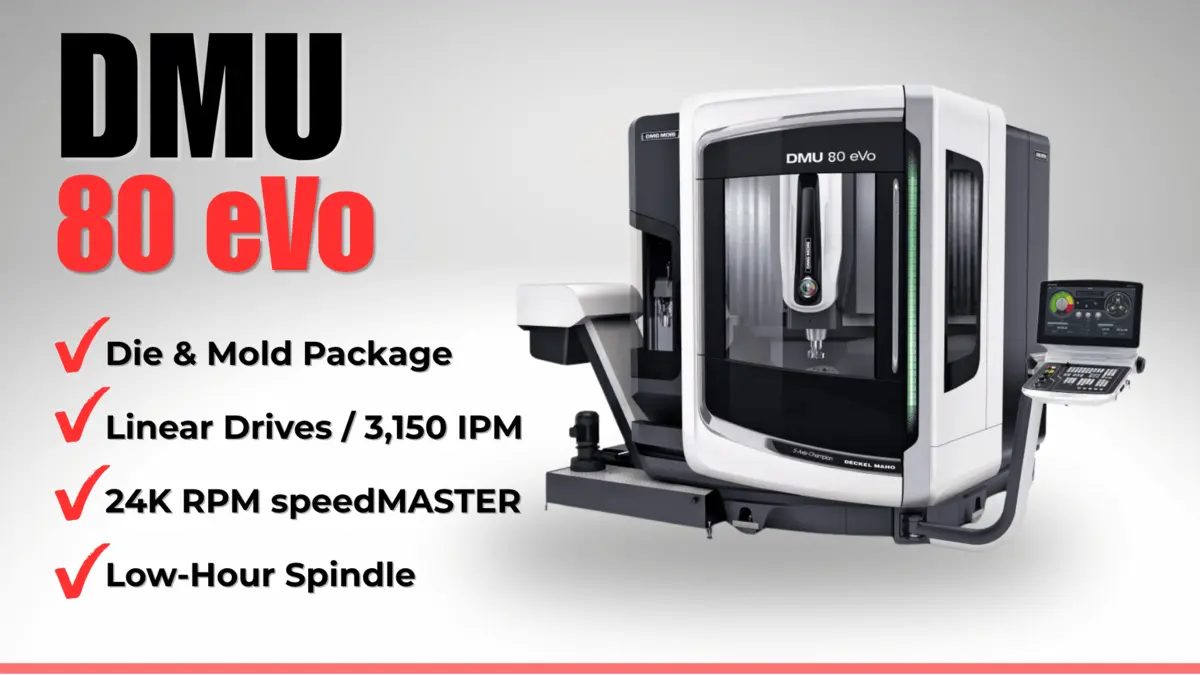

Used 2022 DMG MORI DMU 80 EVO | Vertical Machining Centers (5-Axis or More)
Have one to sell?
ConditionUsed
1 available
Travels: X 31.49" / Y 25.59" / Z 21.65"
Table: NC swivel rotary table, 31.5" x 27.5"; B-axis -5° to +110°, C-axis 360°; 1,322 lb capacity
Spindle: speedMASTER 24,000 RPM, HSK-A63.
Die & Mold Package (linear): linear drives on X and Y; 3,150 IPM rapids; high-end cooling unit; reduced-tolerance geometry
Tool magazine: 60 stations, double gripper
Control: CELOS with Siemens 840D sl, 21.5" multi-touch
Coolant and chips: 80 bar (1,160 PSI) ICS with paper filter and 980 L (259 gal) tank; apron chip conveyor; 25 µm double cartridge filter; programmable coolant nozzles; air through spindle; extended swarf flushing; rotating clear-view window; mist separator
Measuring: Renishaw PP400 probe, Blum NT laser tool setter, 3D quickSET, MPC
Other: electronic handwheel, CELOS PC version, SERVICEcamera, Digital Manufacturing Package, CSA spec
Weight: approx. 26,014 lbs
Travels: X 31.49" / Y 25.59" / Z 21.65"
Table: NC swivel rotary table, 31.5" x 27.5"; B-axis -5° to +110°, C-axis 360°; 1,322 lb capacity
Spindle: speedMASTER 24,000 RPM, HSK-A63.
Die & Mold Package (linear): linear drives on X and Y; 3,150 IPM rapids; high-end cooling unit; reduced-tolerance geometry
Tool magazine: 60 stations, double gripper
Control: CELOS with Siemens 840D sl, 21.5" multi-touch
Coolant and chips: 80 bar (1,160 PSI) ICS with paper filter and 980 L (259 gal) tank; apron chip conveyor; 25 µm double cartridge filter; programmable coolant nozzles; air through spindle; extended swarf flushing; rotating clear-view window; mist separator
Measuring: Renishaw PP400 probe, Blum NT laser tool setter, 3D quickSET, MPC
Other: electronic handwheel, CELOS PC version, SERVICEcamera, Digital Manufacturing Package, CSA spec
Weight: approx. 26,014 lbs
Travels: X 31.49" / Y 25.59" / Z 21.65"
Table: NC swivel rotary table, 31.5" x 27.5"; B-axis -5° to +110°, C-axis 360°; 1,322 lb capacity
Spindle: speedMASTER 24,000 RPM, HSK-A63.
Die & Mold Package (linear): linear drives on X and Y; 3,150 IPM rapids; high-end cooling unit; reduced-tolerance geometry
Tool magazine: 60 stations, double gripper
Control: CELOS with Siemens 840D sl, 21.5" multi-touch
Coolant and chips: 80 bar (1,160 PSI) ICS with paper filter and 980 L (259 gal) tank; apron chip conveyor; 25 µm double cartridge filter; programmable coolant nozzles; air through spindle; extended swarf flushing; rotating clear-view window; mist separator
Measuring: Renishaw PP400 probe, Blum NT laser tool setter, 3D quickSET, MPC
Other: electronic handwheel, CELOS PC version, SERVICEcamera, Digital Manufacturing Package, CSA spec
Weight: approx. 26,014 lbs
Imperial
| X | 31.496" |
| Y | 25.591" |
| Z | 15.748" |
| # Axis | 5 |
| RPM | 14,000 RPM |
| # ATC | 40 |
Travels: X 31.49" / Y 25.59" / Z 21.65"
Table: NC swivel rotary table, 31.5" x 27.5"; B-axis -5° to +110°, C-axis 360°; 1,322 lb capacity
Spindle: speedMASTER 24,000 RPM, HSK-A63.
Die & Mold Package (linear): linear drives on X and Y; 3,150 IPM rapids; high-end cooling unit; reduced-tolerance geometry
Tool magazine: 60 stations, double gripper
Control: CELOS with Siemens 840D sl, 21.5" multi-touch
Coolant and chips: 80 bar (1,160 PSI) ICS with paper filter and 980 L (259 gal) tank; apron chip conveyor; 25 µm double cartridge filter; programmable coolant nozzles; air through spindle; extended swarf flushing; rotating clear-view window; mist separator
Measuring: Renishaw PP400 probe, Blum NT laser tool setter, 3D quickSET, MPC
Other: electronic handwheel, CELOS PC version, SERVICEcamera, Digital Manufacturing Package, CSA spec
Weight: approx. 26,014 lbs
