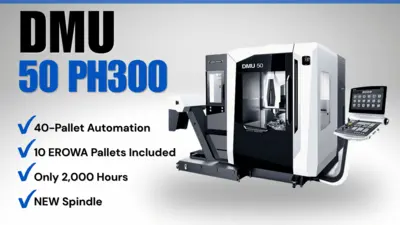

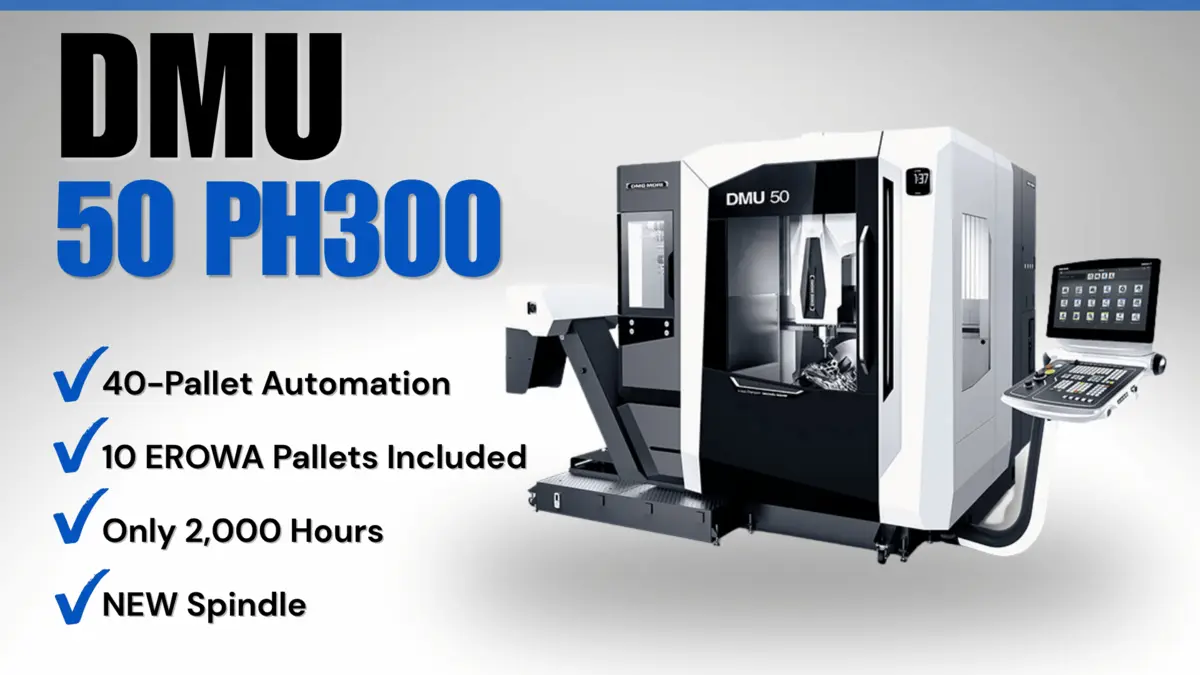

Used 2023 DMG MORI DMU 50 GEN III | Vertical Machining Centers (5-Axis or More)
Have one to sell?
ConditionUsed
1 available
Travels: X 25.59" / Y 20.47" / Z 18.70"
Table: NC swivel rotary table, Ø630 x 500 mm (24.8" x 19.6"); B-axis -35° to +110°, C-axis 360°
Spindle: speedMASTER 20,000 RPM, HSK-A63, 47 / 33 HP (40% / 100% duty cycle).
Tool magazine: 120 stations, HSK-A63
Rapids: 1,654 IPM
Control: CELOS with Siemens 840D sl, 21.5" multi-touch
Automation: PH Cell (PH300), 40 pallet stations across 2 shelf modules; 10 EROWA UPC pallets included; EROWA UPC-P zero-point clamping; rotatable setup station; Control Comfort Plus pallet management
Coolant and chips: 40 bar (580 PSI) ICS with paper filter and 600 L tank; chip conveyor; air through spindle; chip flushing; coolant/air blast changeover; rotating clear-view window; mist separator
Measuring: Renishaw PP60 probe, Blum DIGILOG laser tool setter, 3D quickSET, Machine Protection Control (MPC)
Other: tropical climate package, Application Tuning Cycle, power-failure safety package, electronic handwheel, 4-color signal lamp, CSA spec, DMG MORI Connect
Weight: approx. 16,535 lbs (base machine)
Travels: X 25.59" / Y 20.47" / Z 18.70"
Table: NC swivel rotary table, Ø630 x 500 mm (24.8" x 19.6"); B-axis -35° to +110°, C-axis 360°
Spindle: speedMASTER 20,000 RPM, HSK-A63, 47 / 33 HP (40% / 100% duty cycle).
Tool magazine: 120 stations, HSK-A63
Rapids: 1,654 IPM
Control: CELOS with Siemens 840D sl, 21.5" multi-touch
Automation: PH Cell (PH300), 40 pallet stations across 2 shelf modules; 10 EROWA UPC pallets included; EROWA UPC-P zero-point clamping; rotatable setup station; Control Comfort Plus pallet management
Coolant and chips: 40 bar (580 PSI) ICS with paper filter and 600 L tank; chip conveyor; air through spindle; chip flushing; coolant/air blast changeover; rotating clear-view window; mist separator
Measuring: Renishaw PP60 probe, Blum DIGILOG laser tool setter, 3D quickSET, Machine Protection Control (MPC)
Other: tropical climate package, Application Tuning Cycle, power-failure safety package, electronic handwheel, 4-color signal lamp, CSA spec, DMG MORI Connect
Weight: approx. 16,535 lbs (base machine)
Travels: X 25.59" / Y 20.47" / Z 18.70"
Table: NC swivel rotary table, Ø630 x 500 mm (24.8" x 19.6"); B-axis -35° to +110°, C-axis 360°
Spindle: speedMASTER 20,000 RPM, HSK-A63, 47 / 33 HP (40% / 100% duty cycle).
Tool magazine: 120 stations, HSK-A63
Rapids: 1,654 IPM
Control: CELOS with Siemens 840D sl, 21.5" multi-touch
Automation: PH Cell (PH300), 40 pallet stations across 2 shelf modules; 10 EROWA UPC pallets included; EROWA UPC-P zero-point clamping; rotatable setup station; Control Comfort Plus pallet management
Coolant and chips: 40 bar (580 PSI) ICS with paper filter and 600 L tank; chip conveyor; air through spindle; chip flushing; coolant/air blast changeover; rotating clear-view window; mist separator
Measuring: Renishaw PP60 probe, Blum DIGILOG laser tool setter, 3D quickSET, Machine Protection Control (MPC)
Other: tropical climate package, Application Tuning Cycle, power-failure safety package, electronic handwheel, 4-color signal lamp, CSA spec, DMG MORI Connect
Weight: approx. 16,535 lbs (base machine)
Imperial
| X | 25.6" |
| Y | 20.4" |
| Z | 18.7" |
| # Axis | 5 |
| Power | 28 hp |
| RPM | 15,000 RPM |
| # ATC | 30 |
| Taper | 40 |
Travels: X 25.59" / Y 20.47" / Z 18.70"
Table: NC swivel rotary table, Ø630 x 500 mm (24.8" x 19.6"); B-axis -35° to +110°, C-axis 360°
Spindle: speedMASTER 20,000 RPM, HSK-A63, 47 / 33 HP (40% / 100% duty cycle).
Tool magazine: 120 stations, HSK-A63
Rapids: 1,654 IPM
Control: CELOS with Siemens 840D sl, 21.5" multi-touch
Automation: PH Cell (PH300), 40 pallet stations across 2 shelf modules; 10 EROWA UPC pallets included; EROWA UPC-P zero-point clamping; rotatable setup station; Control Comfort Plus pallet management
Coolant and chips: 40 bar (580 PSI) ICS with paper filter and 600 L tank; chip conveyor; air through spindle; chip flushing; coolant/air blast changeover; rotating clear-view window; mist separator
Measuring: Renishaw PP60 probe, Blum DIGILOG laser tool setter, 3D quickSET, Machine Protection Control (MPC)
Other: tropical climate package, Application Tuning Cycle, power-failure safety package, electronic handwheel, 4-color signal lamp, CSA spec, DMG MORI Connect
Weight: approx. 16,535 lbs (base machine)
