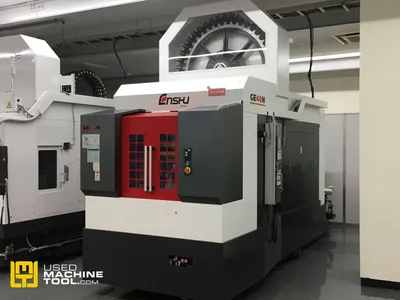

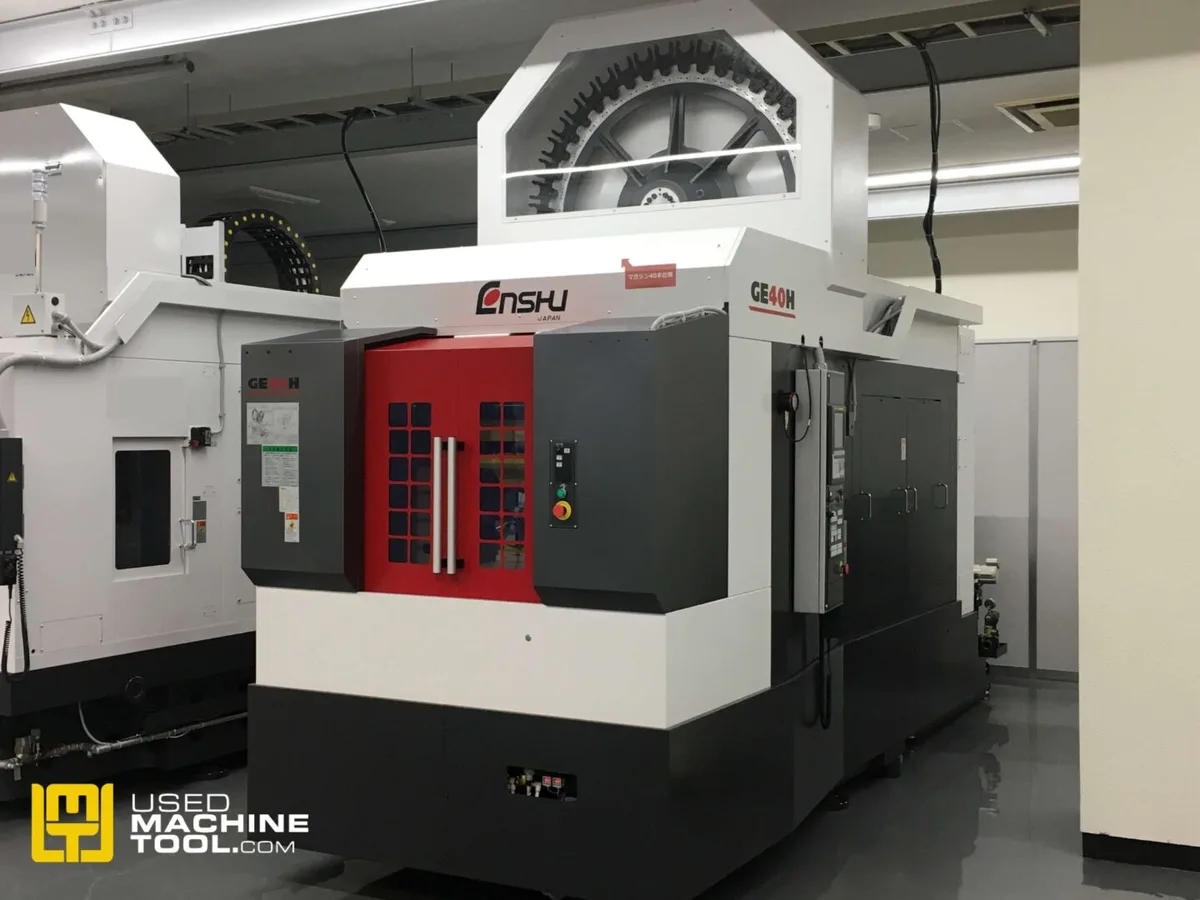

Enshu GE40H Horizontal Machining Center

Fanuc 31iMB CNC
4-axis simultaneous (X/Y/Z/B)
2MB program memory / 400 programs
8.4″ color LCD
Embedded Ethernet / USB
12,000 RPM spindle
33.5 HP
Big Plus / CAT40
Direct coupled
1.7 sec ramp to 12,000 RPM
X/Y/Z travels: 19.7″ (500mm) each
Rapid feedrate: 2,362 IPM (60 m/min)
Positioning: 0.000160″ | Repeatability: ±0.000080″
40-tool armless ATC
2.6 sec tool change | 3.8 sec chip-to-chip
Max tool length: 11.8″ | Max diameter: 3.9″
400mm pallets
Full 4th [B] axis
7 sec pallet change
1,100 lb pallet capacity per side
0.001° minimum index
Through spindle coolant: 260 PSI / 15 GPM
Bed flush, ceiling shower & flood coolant
Spindle oil chiller & air curtain
Rolling filter chip conveyor
200–220V / 3-phase / 60Hz
28 KVA
Floor space: 180″ x 112″ x 139″
Weight: 14,330 lbs (6,500 kg)
