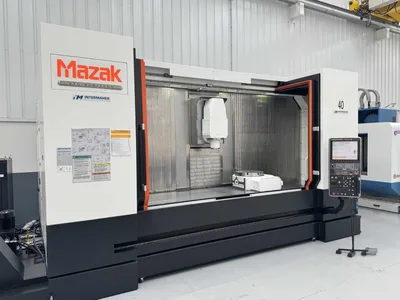

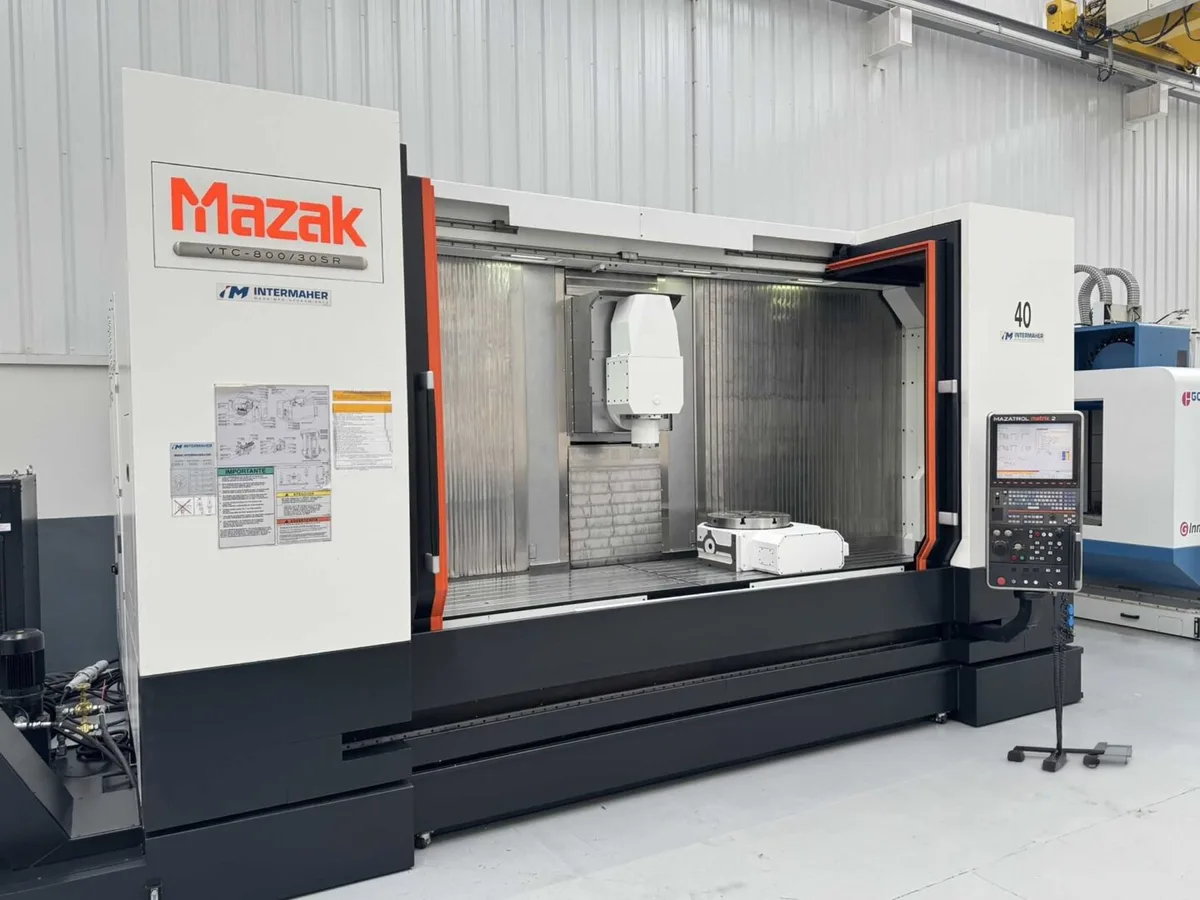

Mazak VTC-800/30SR

Description

The Mazak VTC-800/30SR is a high-performance 5-axis vertical machining center engineered for large, complex workpieces. Its swiveling B-axis head (±110°, 220° total range) enables vertical, horizontal, and angled surface machining in a single setup — reducing cycle time and fixturing costs. With a 118″ X-axis stroke and 18,000 RPM spindle, the VTC-800/30SR is a proven solution for aerospace, mold making, and precision manufacturing applications.

Axis Travels X: 118.1″ | Y: 31.5″ | Z: 28.35″ | B-axis: ±110° | C-axis: 360°

Worktable 137.8″ × 32.3″ table with 5,512 lb max load capacity.

Spindle 18,000 RPM | 47 HP | 124 ft-lb torque | CAT-40 taper

Tool Magazine 30 tools standard (48 optional) | Max tool Ø 3.15″ | Max tool length 13.78″

Performance Rapid traverse: 1,969 in/min | B-axis indexing: 0.0001° | Control: Mazatrol Matrix 2

Standard Equipment NC rotary table, high-pressure through-spindle coolant, chip conveyor, tool length measurement and breakage detection, 3-color signal light.
