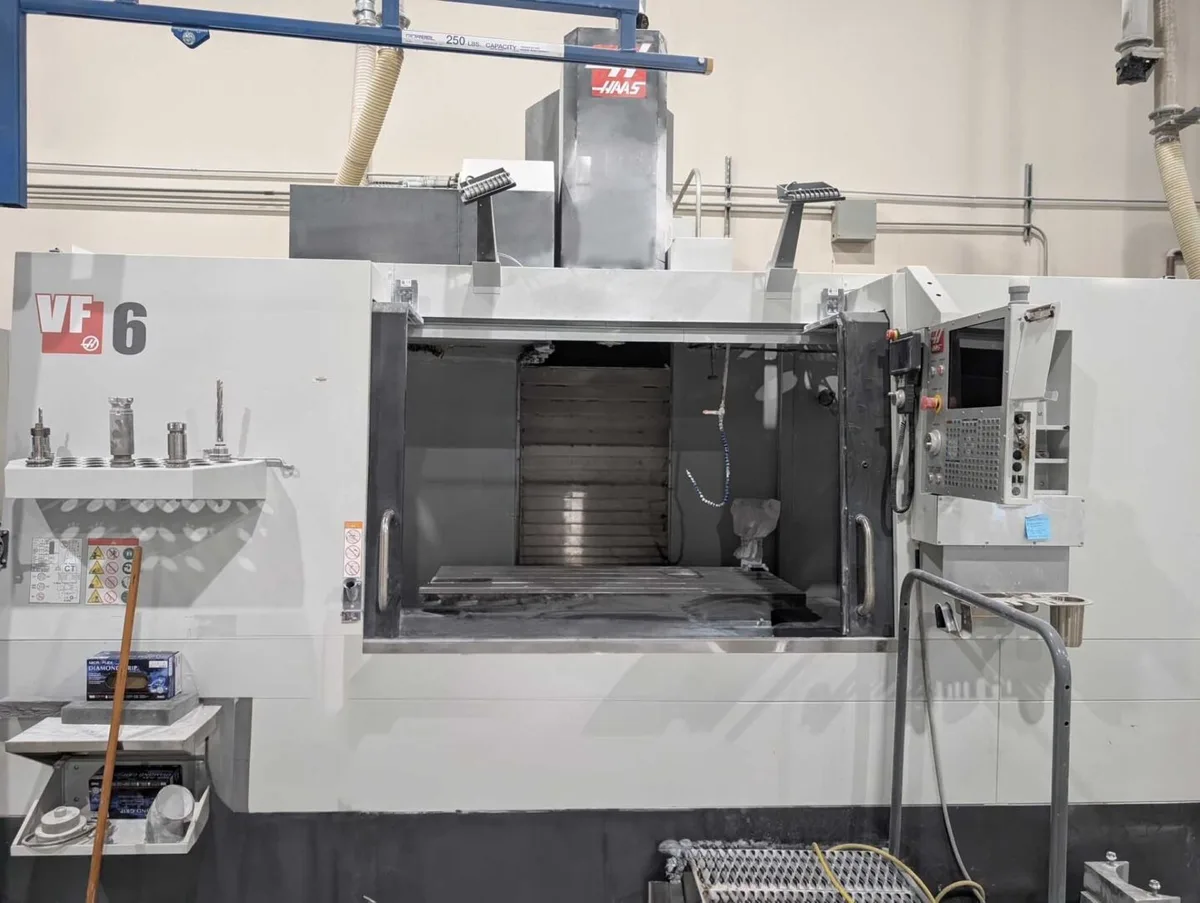

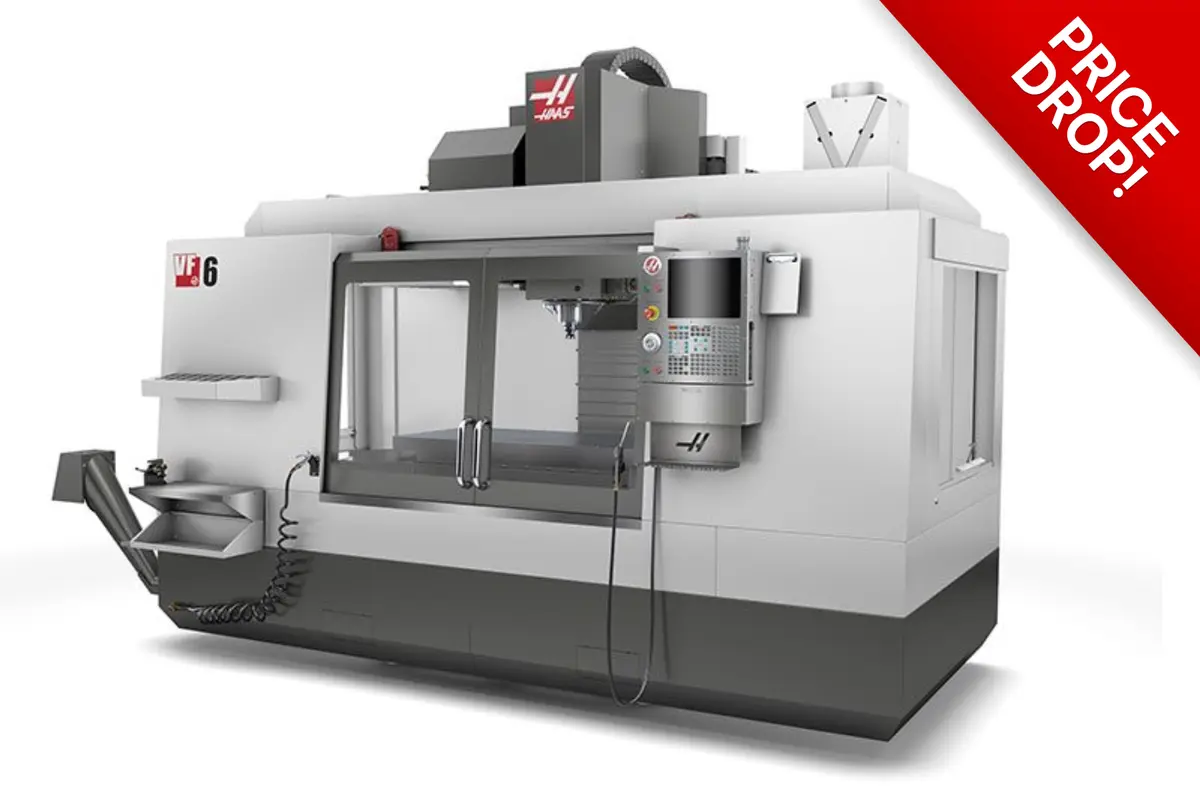

Haas VF-6/40 CNC Vertical Machining Center

Description

Haas VF-6/40 CNC Vertical Machining Center — New 2023

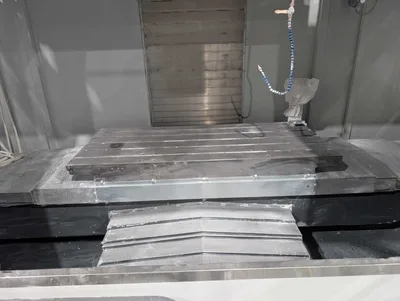

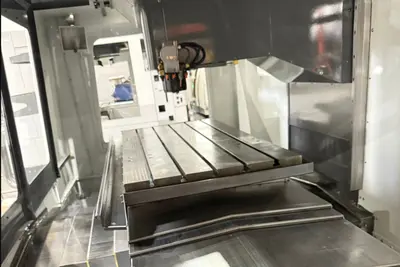

Massive work envelope — 64″ x 32″ x 30″ (X/Y/Z) travels handle large, complex parts in a single setup

High-speed 10,000 RPM inline spindle with 30 HP motor delivers the power and speed for aggressive material removal

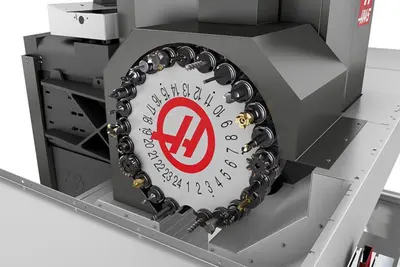

CAT 40 taper with 30+1 high speed sidemount tool changer keeps cycle times short and changeovers fast

4th axis ready — drive and wiring already installed, no costly retrofitting required

Through spindle coolant ready — prepped for TSC to extend tool life and improve surface finish on deep-cavity work

Extended Z-axis clearance — 8″ additional clearance accommodates taller workpieces and fixturing

Connected and networked — Haas Connect and Wifi built in for remote monitoring and DNC file transfer

Production-proven options package — chip auger, rigid tapping, M-code programmable coolant nozzle, and high intensity lighting included

Replacement cost $211,350 — priced well below new for serious capability

WHY THIS MACHINE

This 2023 Haas VF-6/40 CNC Vertical Machining Center offers a large-format work envelope — 64″ x 32″ x 30″ — making it well suited for shops running oversized parts, long profiles, or multiple fixtures in a single setup. The 10,000 RPM inline spindle with 30 HP delivers consistent power across a wide range of materials, while the CAT 40 taper and 30+1 high speed sidemount tool changer keep production moving. The machine comes fully equipped with 4th axis drive and wiring, 8″ extended Z-axis clearance, through spindle coolant ready, rigid tapping, and a chip auger — everything needed to go to work without additional investment. Connectivity is built in via Haas Connect and Wifi, allowing remote monitoring and seamless file transfer. With a new replacement cost of $211,350, this machine represents serious large-format machining capability at a significant value.
