DMG Mori NL2500SY/700
Have one to sell?
ConditionUsed
1 available

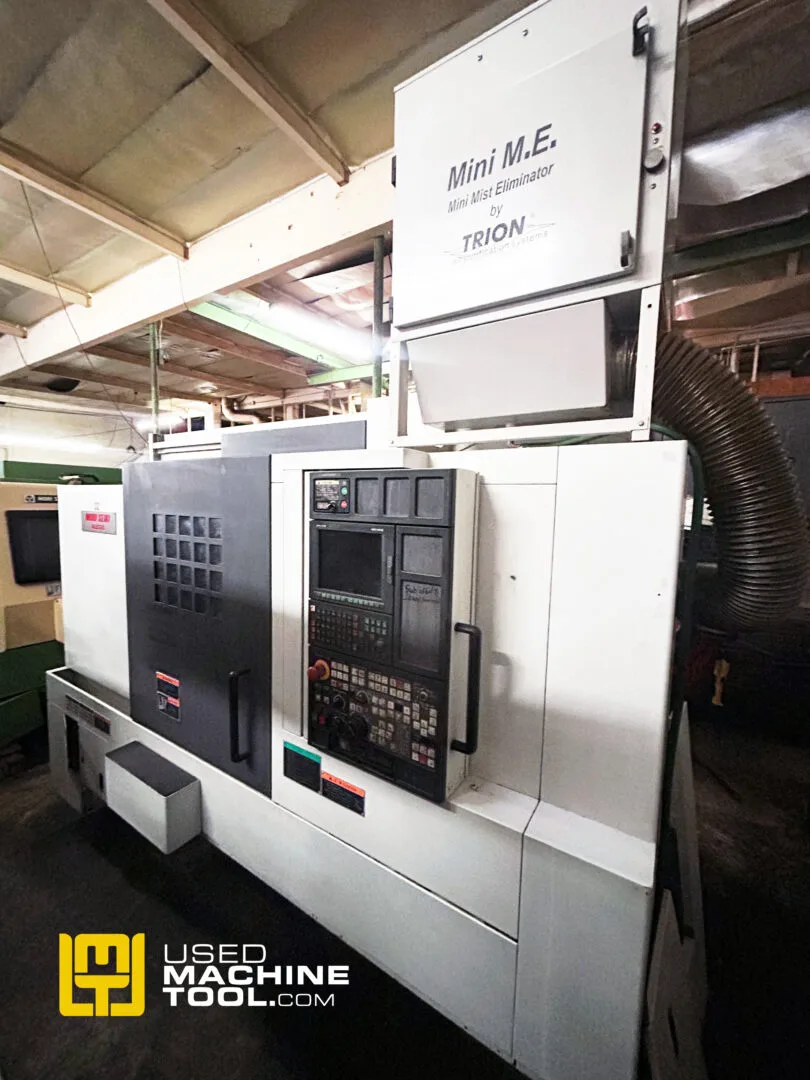

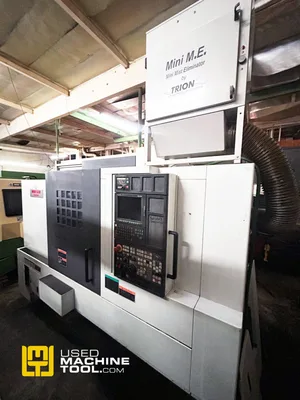

DMG Mori NL2500SY/700 CNC Turning Center with Dual Spindle, Y-Axis and Live Tooling
The DMG Mori NL2500SY/700 is a dual-spindle CNC turning center with Y-axis and live tooling, built for high-production precision machining. With a 27.6-inch bed, a high-output main spindle at 34.8 HP, and a sub-spindle for complete part machining in a single setup, the NL2500SY/700 is engineered for shops that need to eliminate secondary operations and maximize throughput. The Mitsubishi MSX850BM control running MAPPS 3 conversational software makes programming straightforward at the machine.
The main spindle runs to 4,000 RPM with a 3.58-inch through-bore and a Kitagawa 10-inch hollow chuck — well suited for larger diameter barstock and chucked parts. The sub-spindle features a Kitagawa 6-inch hollow chuck with a 1.69-inch bore, allowing complete backworking without re-fixturing. Both spindles include in-machine tool presetters for fast, accurate tool setup. The 12-station turret with Y-axis and bolt-mounted live tooling supports milling, drilling, and contouring in the same cycle as turning.
This machine is automation-ready with a multiple-bar bar feeder interface, work unloader, workpiece ejector, and a right-side hinge chip conveyor for unattended operation. Water-soluble coolant system, air device, and air pressure switch are all included. No step-down transformer required for U.S. 220V installation.
X-Axis Travel: 10.24 in (260 mm)
Y-Axis Travel: +1.97 / -1.97 in (±50 mm)
Z-Axis Travel: 31.30 in (795 mm)
Spindle 2 (B-Axis) Travel: 28.90 in (734 mm)
Max Turning Diameter: 14.02 in (366 mm)
Max Turning Length: 27.76 in (705 mm)
Swing Over Bed: 36.37 in (920 mm)
Swing Over Cross Slide: 29.72 in (755 mm)
Manufacturer: DMG Mori
Model: NL2500SY/700
Control: Mitsubishi MSX850BM / MAPPS 3
Software: Mitsubishi M-720BM (MAPPS 3), CAPS-L
Manufacture Date: June 2006
Voltage: 220V / 60Hz Bed Length: 27.6 in (700 mm)
Spindle 1 Speed: 4,000 RPM
Spindle 1 Output: 34.8 / 29.5 HP (26 / 22 kW) High-Output
Spindle 1 Through-Bore: 3.58 in (91 mm)
Spindle 1 Chuck: Kitagawa 10″ Hollow Chuck
Spindle 1 Cooling: Oil Cooler
Spindle 1 Orientation: Included
Spindle 2: Provided
Spindle 2 Output: 14.8 / 10.1 HP (11 / 7.5 kW)
Spindle 2 Through-Bore: 1.69 in (43 mm)
Spindle 2 Chuck: Kitagawa 6″ Hollow Chuck
Spindle 2 Chuck Cylinder: Howa 6″ Solid Chuck
Turret Stations: 12
Y-Axis: Yes
Live Tooling / Milling: Yes
Tool Mounting: Bolt-mounted OD Rotary Tool
Overhang: 1.97 in (50 mm)
Tailstock: Not included
Bar Feeder Interface: Multiple-bar (interface only)
Chip Conveyor: Hinge type, right-side discharge
Work Unloader: Included
Workpiece Ejector: Included
Tool Presetter Spindle 1: Manual in-machine (up/down)
Tool Presetter Spindle 2: Manual (detachable)
Coolant System: Standard (325W / 520W), water-soluble
Chuck Footswitch: Single
Air Pressure Switch: Included
Air Device: Included
Program Storage: 320 MB
User Memory (MAPPS): 50 MB
Stored Programs: 200
Work Coordinate Pairs: 6 Macro
Variables: 200
Screen Language: English
