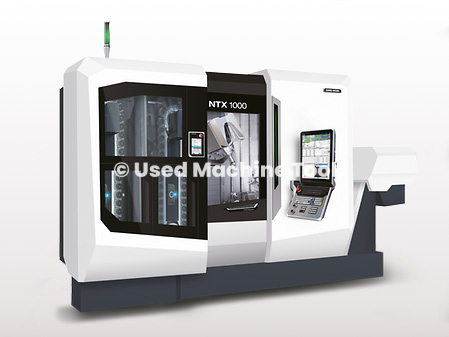

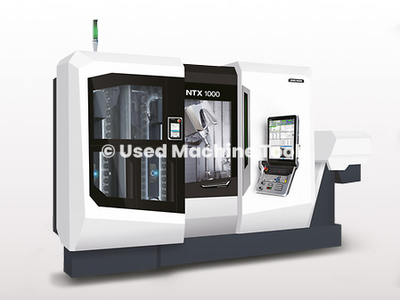

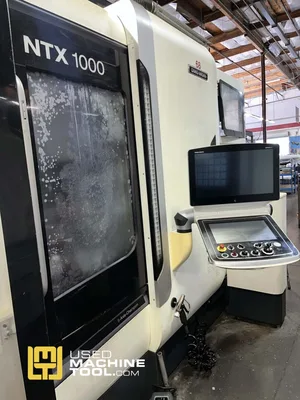

2015 DMG MORI NTX 1000 Second Generation SZM

Control: FANUC FS-31iB5 / MAPPS 4S

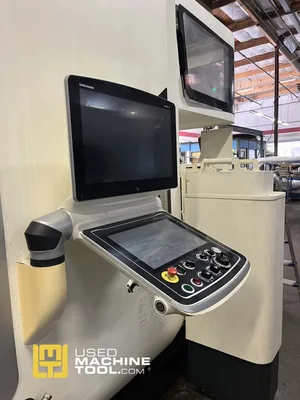

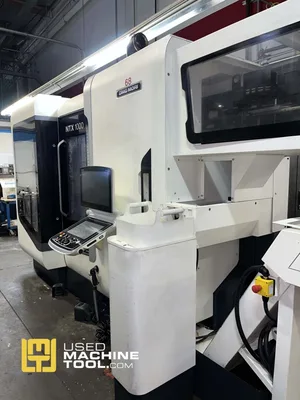

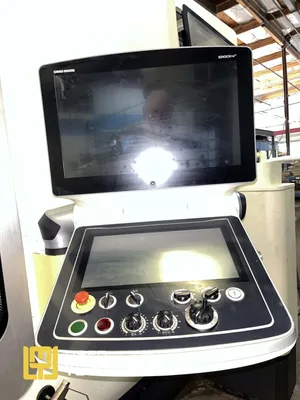

Operation Panel: ERGOLINE TOUCH (21.5″ + 15.6″)
Spindle 1: 8″ · 5,000 RPM · 18.5 kW
Spindle 2: 6″ · 6,000 RPM · 11 kW

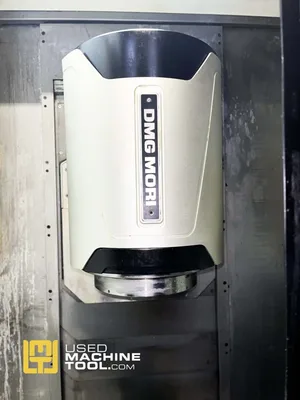

Milling Spindle: 12,000 RPM · 9 kW · 49.4 N·m
B-Axis: Full Indexing
Tool Capacity: 76
Probing: Renishaw RMP60

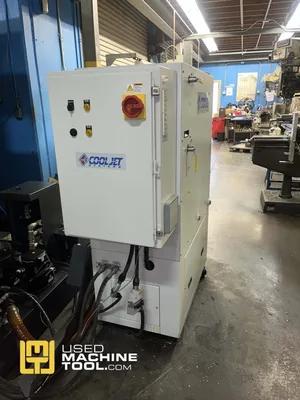

Coolant: 7 MPa Super High-Pressure
Bed Length: 31.5″ (800 mm)
Voltage: 220V / 60Hz

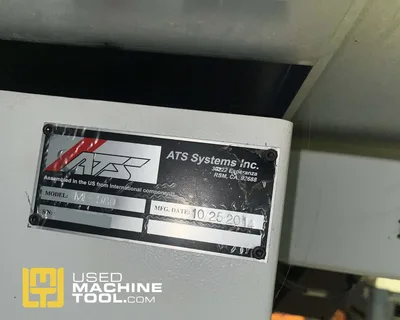

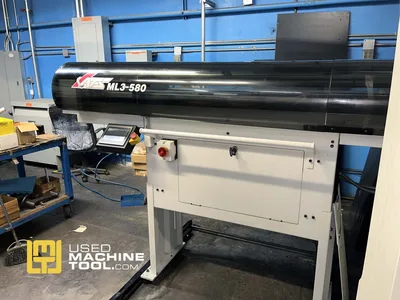

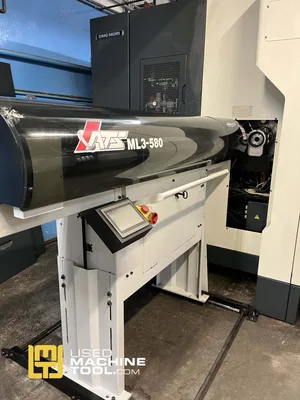

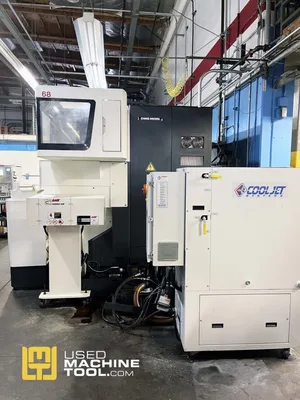

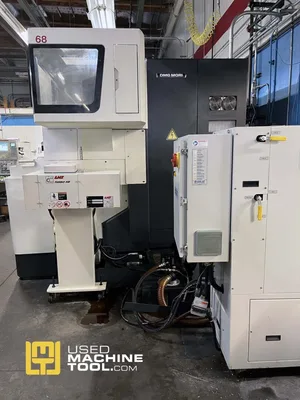

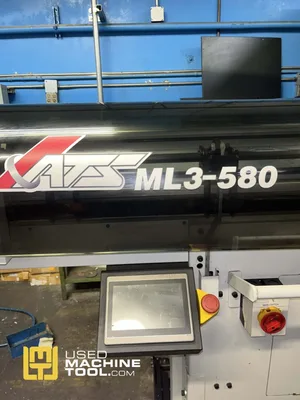

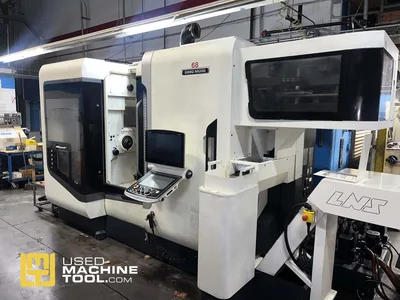

ATS ML3-580 Bar Feed

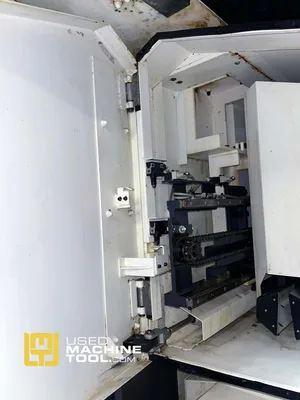

Integrated pickoff system with parts catcher and parts conveyor

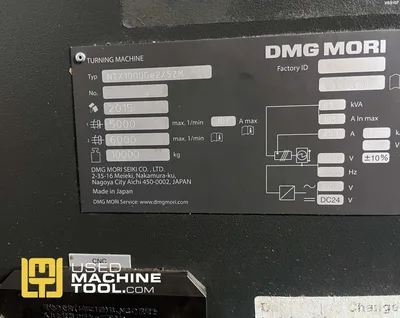

Manufacture Date: March 31, 2015
Setting Unit: Inch
Bed Length: 31.5″
Paint: Calcite White / Black Door

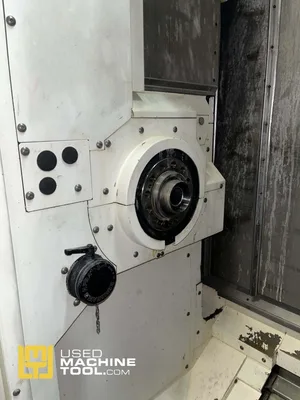

Spindle 1 (Main): Output: 18.5 / 15 kW
Spindle 1 (Main): Speed: 5,000 RPM
Spindle 1 (Main): Through-Spindle Bore: 2.8″
Spindle 1 (Main): Chuck: 8″ Hollow (Kitagawa)
Spindle 1 (Main): Taper: C5

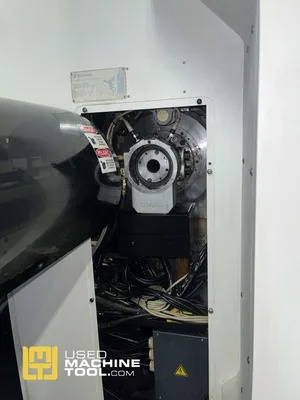

Spindle 2 (Sub): Output: 11 / 7.5 kW
Spindle 2 (Sub): Speed: 6,000 RPM
Spindle 2 (Sub): Chuck: 6″ Hollow (Kitagawa)
Y-Axis: Yes
Milling: Yes
Rotary Tool Output: 9 / 5.5 kW
Rotary Tool Speed: 12,000 RPM
Rotary Tool Torque: 49.4 N·m (15%ED) / 21.9 N·m

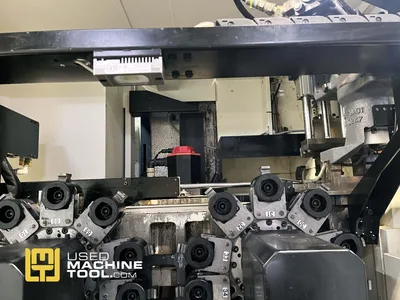

Stations: 10
Tool Mounting: By Bolts

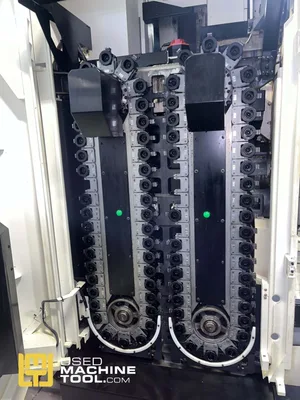

Total Tool Capacity: 76
Coolant: High-Pressure: 635W / 1,040W
Through-Spindle Coolant: Yes

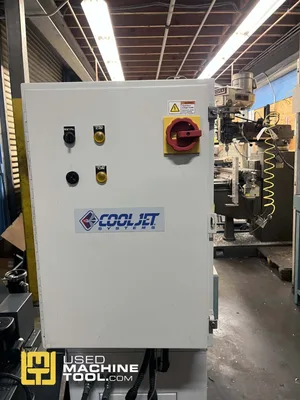

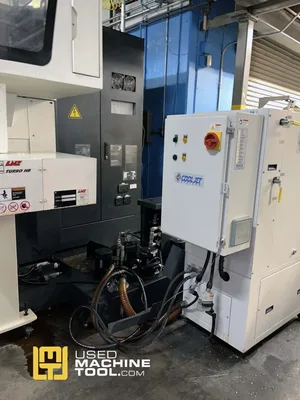

Super High-Pressure: 7 MPa
Coolant Gun: Yes
Type: Water-Soluble

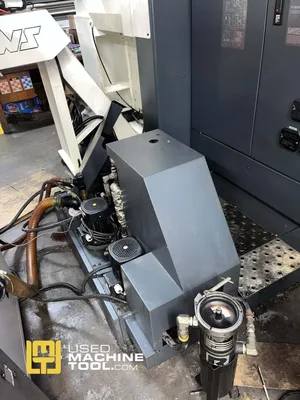

Conveyor Type: Hinge + Scraper + Drum
Disposal Direction: Right
Automation & Part Handling
Work Ejector: Cylinder Type
Work Unloader: Spindle 2 Side

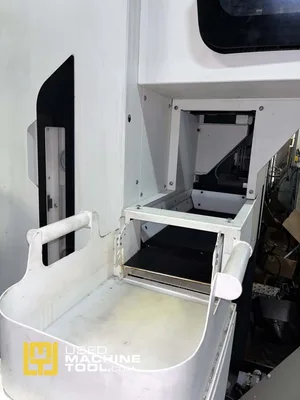

Part Receiver: Yes
Unloading Conveyor: Yes
Bar Feeder Interface: Multi-Bar
In-Machine Tool Presetter: Manual (Detachable)
In-Machine Work Measuring: Renishaw RMP60 (Turret 1)B-Axis Scale: Magnescale
Simultaneous 5-Axis: Yes
AI Contour Control: Level 2
Nano Smoothing: Yes
Tool Center Point Control: Yes
Workpiece Setting Error Compensation: Yes
3D Tool Diameter Compensation: Yes
Tilted Working Plane Command: Yes
Tool Life Management: Type B (120 pairs × 8)
Load Monitor: Type B
Program Storage: 256 KB (640 M)
Stored Programs: 500
Tool Offset Pairs: 240
Custom Macro Variables: 600
User Memory (MAPPS): 6 GB
Remote Communication: Fast Data Server (100Base-TX)
