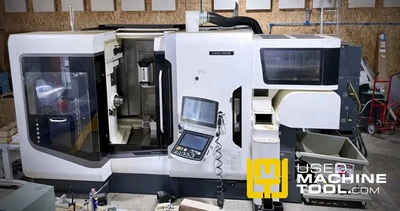

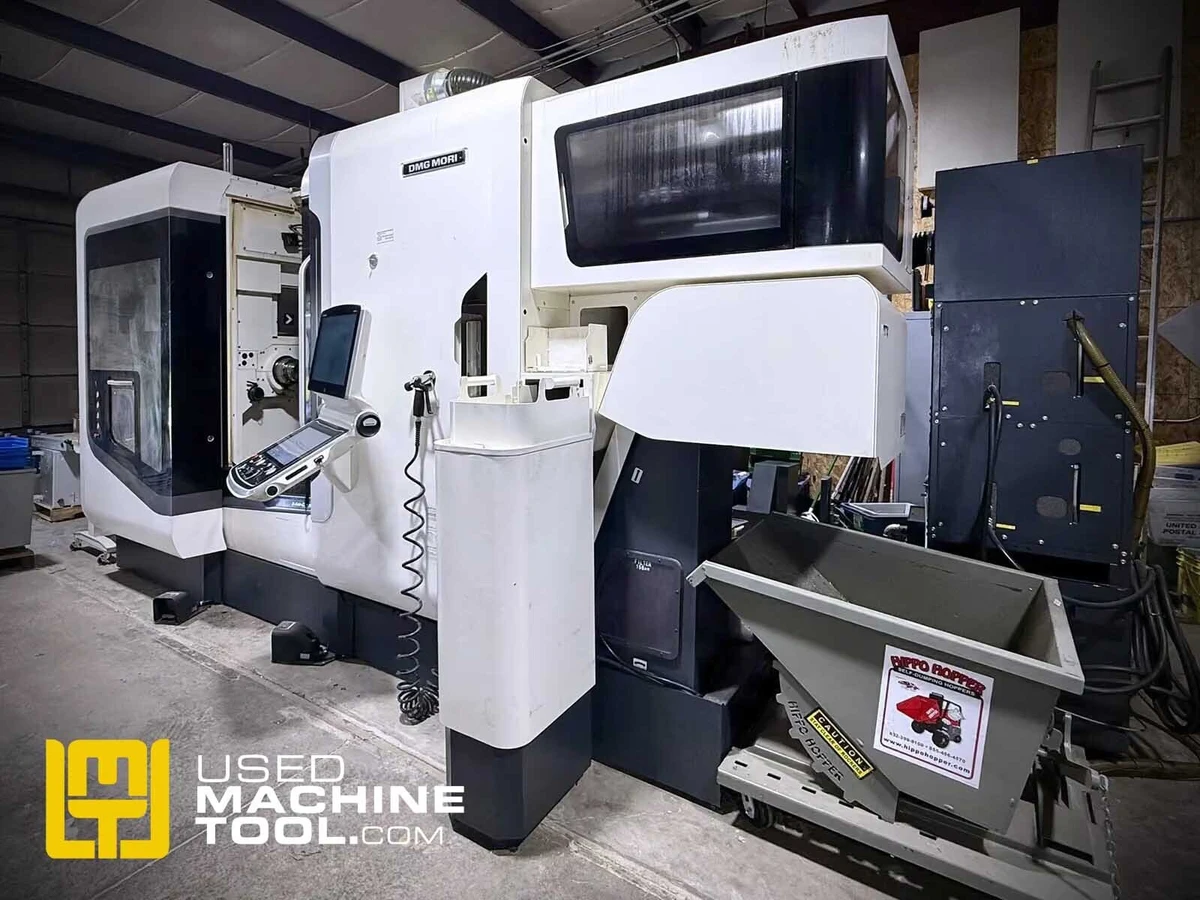

Used 2019 DMG MORI NTX 1000 | 5-Axis or More CNC Lathes

Specifications

Max Turning Diameter: 16.9"
Max Turning Length: 31.5"
Max Bar Capacity: 2.6"
Swing Over Cross Slide: 17.7"
Distance Between Spindles: 41.3"
X1 Axis Travel: 17.9"
Y Axis Travel: ±4.53"
Z1 Axis Travel: 31.4"
X2 Axis Travel: 6.2"
Z2 Axis Travel: 28.7"
B Axis Travel: 240°
C Axis: 360° (0.001°)
X / Y Rapid Traverse: 1,574.8 IPM
Z Rapid Traverse: 1,968.5 IPM
Main Spindle Nose: A2-6
Main Spindle Bore: 2.5"
Main Spindle Speed: 5,000 RPM
Main Spindle Motor: 15 HP

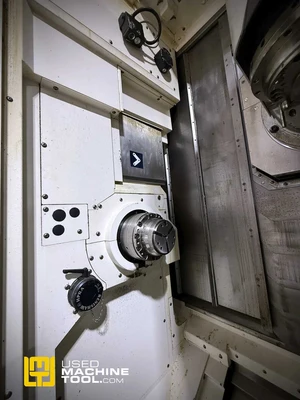

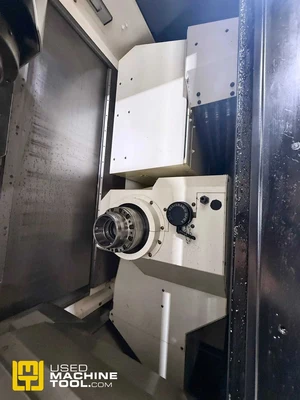

Sub Spindle Nose: A2-6
Sub Spindle Bore: 2.0"
Sub Spindle Speed: 6,000 RPM
Sub Spindle Motor: 15 HP

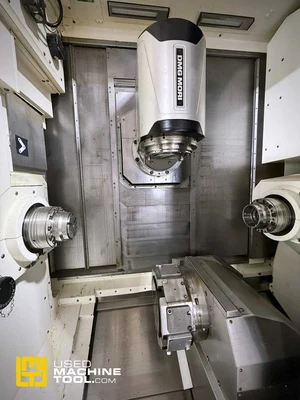

Milling Spindle Taper: Capto C5
Milling Spindle Max Speed: 20,000 RPM

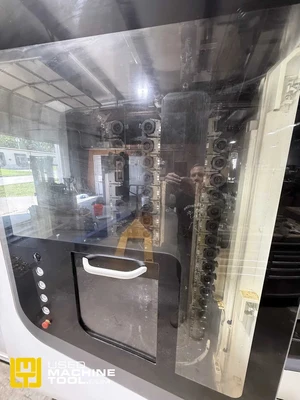

Tool Storage Capacity: 76

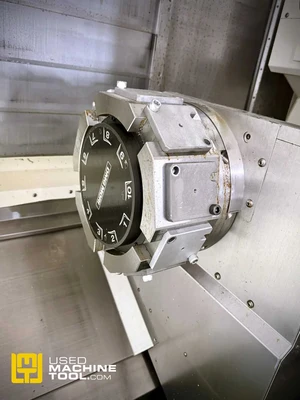

Lower Turret Capacity: 10
Overall Dimensions: 178.5" x 100.1" x 101.8" H
Weight: approx. 25,353 lbs
